Clustering
In many applications, results or intermediate results of modal analysis contain more than one mode for each physical mode. Examples of this are: - Stochastic Subspace Identification (SSI) yields two identified modes for each physical mode. Also, SSI requires the model order parameter to be specified. If SSI is performed with a variable parameter, the total set of modes (of all concerned model orders) possibly contain a lot more identified modes per physical mode. - In a monitoring scenario of a civil structure, datasets are analysed in regular intervals. Operational modal analysis is performed on them individually, yielding a sequence of sets of identified modes. - In numerical modal analysis, the prediction of modes with a Finite-Element model may be done for many possible values of input parameters, e.g. in a sensitivity analysis, a monte-carlo simulation or probabilistic system identification, to name a few applications.
All of these have in common, that for further processing, examination, or presentation it is useful to group the identified modes belonging to the same physical mode together. Specialised methods evolved for every usecase, as consecutive filtering of a SSI stabilization diagram or Modal Tracking.
While these methods ideally fit the specific needs, their applications share common structures. One way to address all of these, is to apply Clustering in order to group the identified modes.
Principles
Data Structures
An identified mode inherently contains the three modal properties of modal frequency, damping, and shape. If the mode belongs to a specified set of modes, it also contains an index as identifier to which set it belongs. This index can be a model order in an SSI scenario or a dataset number in a monitoring scenario.
In order to enable consistent and concise interfaces custom datastructures are defined using Python’s NamedTuple, a typed version of namedtuple. This bears the cost of transforming a sequence of sets of modes into this datastructure but enables simple and clear application of clustering.
Since the pyomac package works internally with numpy (as every efficient numerical python tool should), a single set of modes is comprised of three numpy arrays, sequentially holding information about the frequencies, dampings and shapes of the modes.
class ModalSet(NamedTuple):
"""Represents a modal set.
implicit convention:
frequencies: np.ndarray (n_modes x 1)
dampings: np.ndarray (n_modes x 1)
modeshapes: np.ndarray (n_modes x n_dof)
"""
frequencies: np.ndarray
dampings: np.ndarray
modeshapes: np.ndarray
As previously stated, every set of modes usually has an index.
class IndexedModalSet(NamedTuple):
"""Represents a modal set.
implicit convention:
indices: np.ndarray (n_modes x 1)
frequencies: np.ndarray (n_modes x 1)
dampings: np.ndarray (n_modes x 1)
modeshapes: np.ndarray (n_modes x n_dof)
"""
indices: np.ndarray
frequencies: np.ndarray
dampings: np.ndarray
modeshapes: np.ndarray
As we will see later, the choice to store the index of each mode separately in the indices array enables this data structure to be used for the results of clustering as well. This way each mode can retain the information of which modal sets it orignated from.
Hierarchical Clustering
In Hierarchical Clustering clusters are formed by splitting and merging other clusters. Agglomerative Clustering is the bottom-up approach where clusters are solely merged. To begin with, each data point (which in our case is an identified mode) is interpreted as a cluster containing only this one data point.
The clusters are then merged based on the distance between the clusters (which is defined by a distance metric between their corresponding data points). The distance between two modes \(i\) and \(j\) is defined as:
\(d_{i,j} = \frac{f_i - f_j}{max(f_i, f_j)} + 1 - MAC(\phi_i, \phi_j)\)
This is largely based on this reference:
[1] REYNDERS, E., J. HOUBRECHTS AND G. DE ROECK Fully automated (operational) modal analysis. Mechanical Systems and Signal Processing, 2012, 29, 228-250.
An inductive Example
[1]:
# The same data as for the SSI example are used:
import numpy as np
import matplotlib.pyplot as plt
from pyomac import ssi_cov_poles, filter_ssi_single_order, filter_ssi_poles
from pyomac.plot import ssi_stability_plot
from pyomac.clustering import (
modal_sets_from_lists,
modal_clusters,
single_set_statistics,
plot_indexed_clusters,
indexed_modal_sets_from_sequence
)
from cycler import cycler
# custom styling for this document
no_spines_dict = {"axes.spines.left": False,
"axes.spines.bottom": False,
"axes.spines.top": False,
"axes.spines.right": False}
# The color cycle corresponds to seaborn.color_palette("Blues").as_hex()[1::2]
color_cycler = cycler(color=['#bad6eb', '#539ecd', '#0b559f'])
with open('../../examples/sample.csv') as csv_file:
data = np.loadtxt(csv_file, skiprows=1, delimiter=',')
[2]:
# SSI and subsequent filtering are applied:
freq, xi, Psi = ssi_cov_poles(data=data, fs=100, n_block_rows=100, max_model_order=50)
filtered_freq, filtered_xi, filtered_Psi = filter_ssi_poles(freq, xi, Psi)
with plt.style.context(
[
"seaborn-white",
no_spines_dict,
{"scatter.marker": "."},
]
):
fig, ax = ssi_stability_plot(filtered_freq)
fig.suptitle("Filtered SSI frequencies")
[3]:
print("Length of filtered frequencies list: {}".format(len(filtered_freq)))
print("First item: {}".format(filtered_freq[0]))
print("Last item: {}".format(filtered_freq[-1]))
Length of filtered frequencies list: 49
First item: []
Last item: [39.11598645 37.41523608 34.83978749 26.44924049 24.10430983 21.14377434
3.740894 4.98351543 6.79614765 6.69647488 20.12027011 18.85521746
18.64805657 18.44649667 18.00042015 15.36661891 14.09540162 13.9927113
11.80451713 12.02215198 11.96702142 13.06746907 12.7199777 12.86652345]
[4]:
# Transform to ModalSets:
modal_sets = modal_sets_from_lists(filtered_freq, filtered_xi, filtered_Psi)
print("Length of filtered modal_sets list: {}".format(len(modal_sets)))
print("First item: {}".format(modal_sets[0]))
print("Last item: {}".format(modal_sets[-1]))
Length of filtered modal_sets list: 49
First item: ModalSet(n_modes = 0, modeshapes_array: (0, 18), frequencies=[])
Last item: ModalSet(n_modes = 24, modeshapes_array: (24, 18), frequencies=[39.11598645 37.41523608 34.83978749 26.44924049 24.10430983 21.14377434
3.740894 4.98351543 6.79614765 6.69647488 20.12027011 18.85521746
18.64805657 18.44649667 18.00042015 15.36661891 14.09540162 13.9927113
11.80451713 12.02215198 11.96702142 13.06746907 12.7199777 12.86652345])
[5]:
# An AllomerativeClusting object can be created from a Sequence of ModalSets:
clusters = modal_clusters(indexed_modal_sets_from_sequence(modal_sets))
print("Length of clusters: {}".format(len(clusters)))
print("First item: {}".format(clusters[0]))
print("Last item: {}".format(clusters[-1]))
Length of clusters: 17
First item: IndexedModalSet(n_modes = 118, modeshapes_array: (118, 18), indices=[ 5 6 7 8 9 9 10 10 11 11 12 12 13 13 14 14 15 15 16 16 17 17 17 18
18 18 19 19 19 20 20 20 21 21 21 22 22 22 23 23 23 24 24 24 25 25 25 26
26 26 27 27 27 28 28 28 29 29 29 30 30 30 31 31 31 32 32 32 33 33 33 34
34 34 35 35 35 36 36 36 37 37 37 38 38 38 39 39 39 40 40 40 41 41 41 42
42 42 43 43 43 44 44 44 45 45 45 46 46 46 47 47 47 47 48 48 48 48], frequencies=[11.87546268 11.8887427 11.86742265 11.86980452 11.83151945 11.85543592
11.87001181 11.89461496 12.02607667 11.87939388 12.02712508 11.8798384
12.01662837 11.88056359 12.01664193 11.88060102 12.01616325 11.87849145
12.0174314 11.879325 12.12658185 11.99916096 11.80323573 12.1263502
11.999163 11.80321415 12.1262875 11.99918627 11.80316231 12.12620078
11.9988649 11.80363706 12.12367602 11.99221201 11.80307077 12.12388171
11.99234117 11.80314603 12.12347211 11.99224506 11.8031488 12.12342575
11.99237429 11.80283117 12.12174778 11.9915429 11.80301692 12.12173911
11.99148978 11.80309007 12.12163587 11.99180686 11.80309128 12.12152135
11.99179243 11.80311691 12.12166609 11.99178066 11.80318089 12.12171728
11.99202317 11.80319031 12.121571 11.99184261 11.80329446 12.12148386
11.99183278 11.8032412 12.12153238 11.99185526 11.80329324 12.12156927
11.80330437 11.99208066 11.80333762 12.12174272 11.99224087 11.80328951
12.12209143 11.9920177 11.80430868 11.9922351 12.12275884 11.80440764
11.99232508 12.1227922 11.80441872 11.99237168 12.12293991 11.80444835
11.99243039 12.12302851 11.80470611 11.98579936 12.1122069 11.80486379
11.98471358 12.11307341 11.8047556 11.98457877 12.11286113 11.8051554
12.11327629 11.983041 11.79545464 12.02639683 12.05826458 11.79773631
12.03121922 12.05794256 11.80387055 12.02187435 11.97449252 12.74327608
11.80451713 12.02215198 11.96702142 12.7199777 ])
Last item: IndexedModalSet(n_modes = 2, modeshapes_array: (2, 18), indices=[45 46], frequencies=[12.77441311 12.78238753])
[6]:
for c in clusters:
(
mean_freq,
mean_xi,
mean_MAC,
stdev_freq,
stdev_xi,
stdev_MAC,
) = single_set_statistics(c)
print(
f"{mean_freq:02.3f} +- {(stdev_freq/mean_freq):.3%} % Hz \t {mean_xi:.3f} +- {(stdev_xi/mean_xi):.3%} % damp. \t {mean_MAC:.3f} +- {stdev_MAC:.3f} MAC"
)
11.973 +- 1.305% % Hz 0.023 +- 35.871% % damp. 0.572 +- 0.290 MAC
19.237 +- 5.796% % Hz 0.027 +- 57.824% % damp. 0.594 +- 0.320 MAC
18.675 +- 0.405% % Hz 0.021 +- 21.766% % damp. 0.870 +- 0.152 MAC
6.755 +- 0.580% % Hz 0.018 +- 19.761% % damp. 0.857 +- 0.131 MAC
14.091 +- 0.111% % Hz 0.024 +- 2.008% % damp. 0.967 +- 0.055 MAC
3.771 +- 0.835% % Hz 0.080 +- 18.632% % damp. 0.994 +- 0.006 MAC
13.076 +- 0.283% % Hz 0.023 +- 8.238% % damp. 0.986 +- 0.028 MAC
19.259 +- 0.054% % Hz 0.013 +- 7.916% % damp. 0.998 +- 0.002 MAC
38.536 +- 2.179% % Hz 0.018 +- 26.055% % damp. 0.959 +- 0.043 MAC
4.984 +- 0.044% % Hz 0.014 +- 3.563% % damp. 1.000 +- 0.001 MAC
34.682 +- 0.967% % Hz 0.022 +- 38.698% % damp. 0.990 +- 0.012 MAC
15.365 +- 0.011% % Hz 0.020 +- 0.463% % damp. 1.000 +- 0.000 MAC
13.990 +- 0.076% % Hz 0.024 +- 2.519% % damp. 0.997 +- 0.005 MAC
24.103 +- 0.024% % Hz 0.020 +- 0.662% % damp. 0.999 +- 0.001 MAC
12.873 +- 0.053% % Hz 0.022 +- 0.032% % damp. 0.997 +- 0.003 MAC
26.418 +- 0.112% % Hz 0.031 +- 2.025% % damp. 0.999 +- 0.000 MAC
12.778 +- 0.031% % Hz 0.024 +- 2.598% % damp. 1.000 +- 0.000 MAC
[7]:

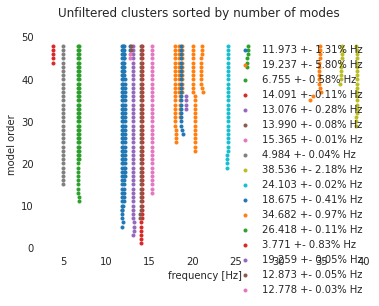

with plt.style.context(
[
"seaborn-white",
no_spines_dict,
{"scatter.marker": "."},
]
):
fig, ax = plot_indexed_clusters(clusters, sort="num_modes", filter=False)
ax.set(xlabel="frequency [Hz]", ylabel="model order")
ax.legend()
fig.suptitle("Unfiltered clusters sorted by number of modes")
[8]:

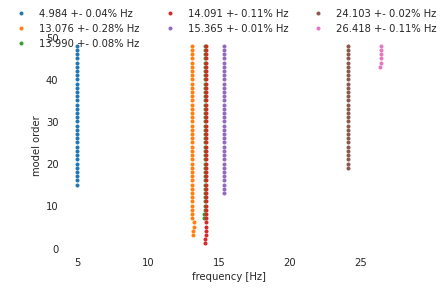

with plt.style.context(
[
"seaborn-white",
no_spines_dict,
{"scatter.marker": "."},
]
):
fig, ax = plot_indexed_clusters(clusters, sort="freq", filter=True, max_freq_cov=0.005, min_n_modes=5)
ax.set(xlabel="frequency [Hz]", ylabel="model order")
fig.legend(loc="upper center", ncol=3)
# fig.suptitle("Fltered clusters sorted by frequency")
